SPECIFICATIONS
APPLICATION

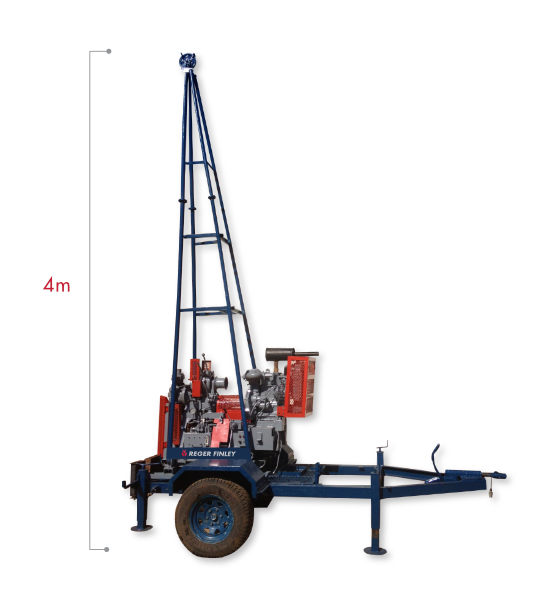

Core drilling investigations for the Civil Industry
DRILL CAPACITY
NQ-50meter
SKID OR TRAILER MOUNTED
Skid or Trailer Mounted
MAST
3 meter length rod pull
ENGINE
Lister, Diesel, 8.5 Kw @ 1800 Rpm
WEIGHT
± 1000Kg
HOIST CABLE:
10mm Wire Rope, 20 meter Capacity
Maximum Lifting Force, (Single Rope) 700kg
WATER PUMP
Engine: Honda GX 240
Pump: FMC Bean R10
Price starting from R990 000 (excl vat.)
Note: All prices are subject to change without notification
SPECIFICATIONS
APPLICATION

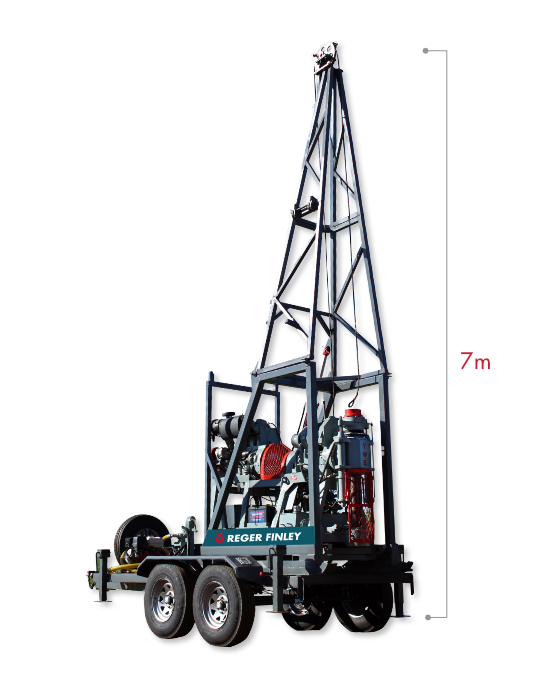

Core drilling investigations for the Civil Industry
DRILL CAPACITY
BQ : 230 m • NQ : 180 m • HQ : 110 m
SKID OR TRAILER MOUNTED
Skid or Trailer Mounted
MAST
3 meter length rod pull
ENGINE
Diesel, 8.5 Kw @ 1800 Rpm
WEIGHT
± 3.2 ton
HOIST CABLE:
Cable: 10mm Wire Rope, 20 meter Capacity
Maximum Lifting Force, (Single Rope) 700kg
WATER PUMP
Engine: Honda GX 240
Pump: FMC Bean R10
Price starting from R1 340 000 (excl vat.)
Note: All prices are subject to change without notification

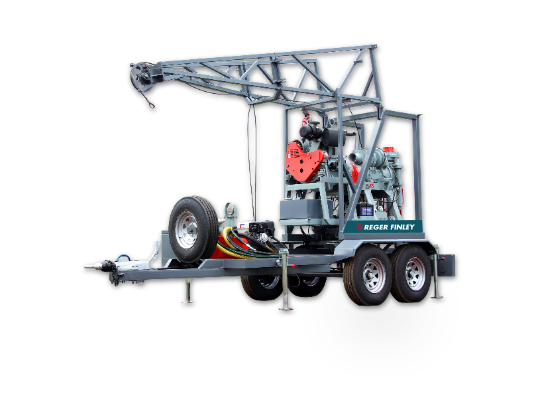

Dynamic Probe Super Heavy
APPLICATION
Geotechnical probing to determine soil density
TECHNICAL:
  • Its compact trailer mounted design and packaging ensures that the DPSH is highly manoeuvrable and mobile.
  • The machine is hydraulically operated and therefore boosts productivity and limits operator error.
  • The result is exceptionally accurate due to the fact that the weight is hydraulically lifted to the precise pre-set below height.
    • SPECIFICATIONS:
  • The weight is 63,5 Kg and have a falling distance of 760 mm
  • 3 Hydraulically Levelling Jacks
  • Hydraulic Mast Lift
  • Foot Clamp and Dump Table
  • Weight Carrier Beam are lifted by means of a hydraulic cylinder
  • Rods are pulled from the hole with the same hydraulic cylinder
  • Weight ± 1000Kg
    • Price starting from R315 000 (excl vat.)
    Note: All prices are subject to change without notification
    GEOTECHNICAL DRILLING EQUIPMENT & ACCESSORIES AVAILABLE
